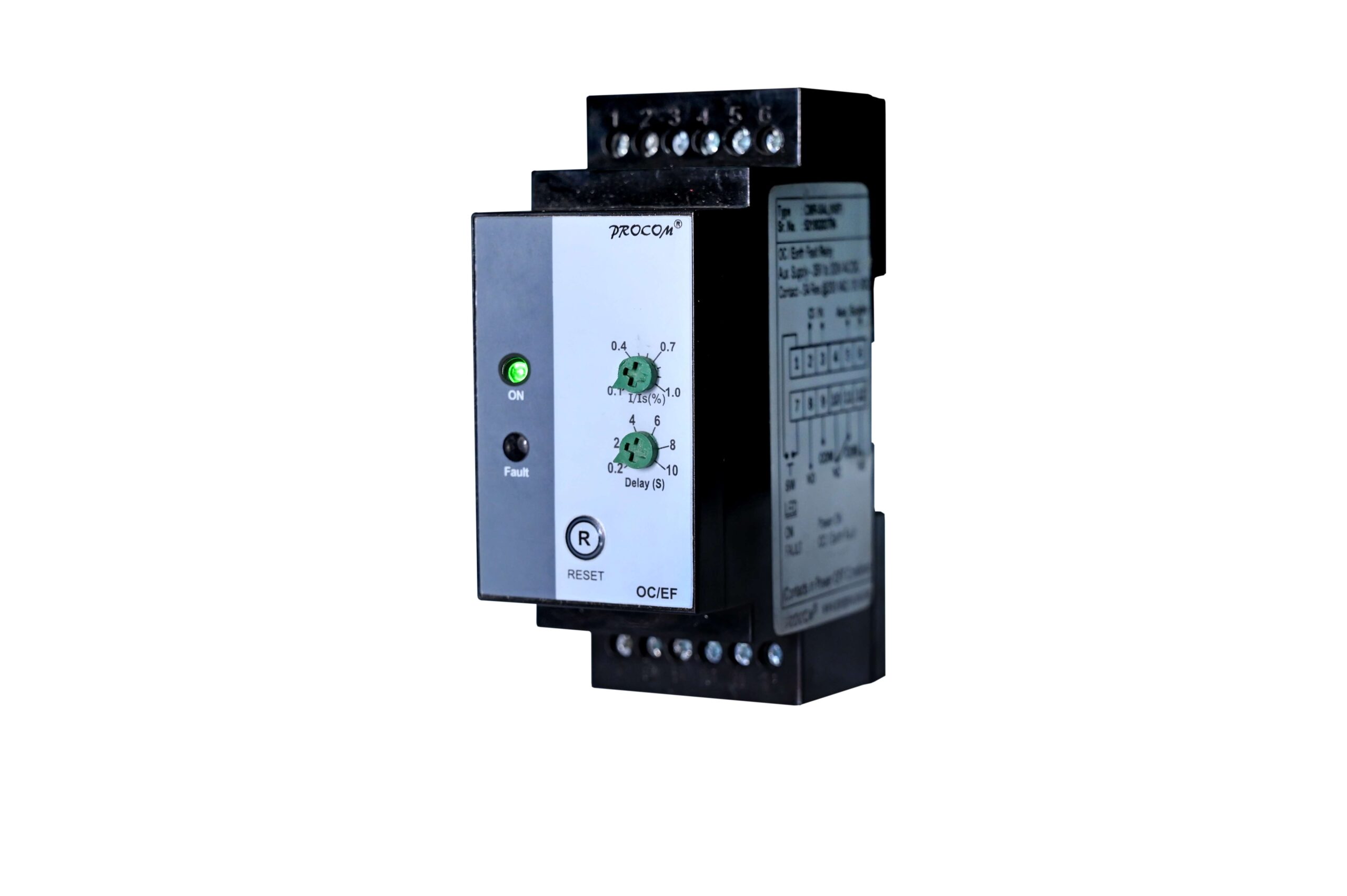

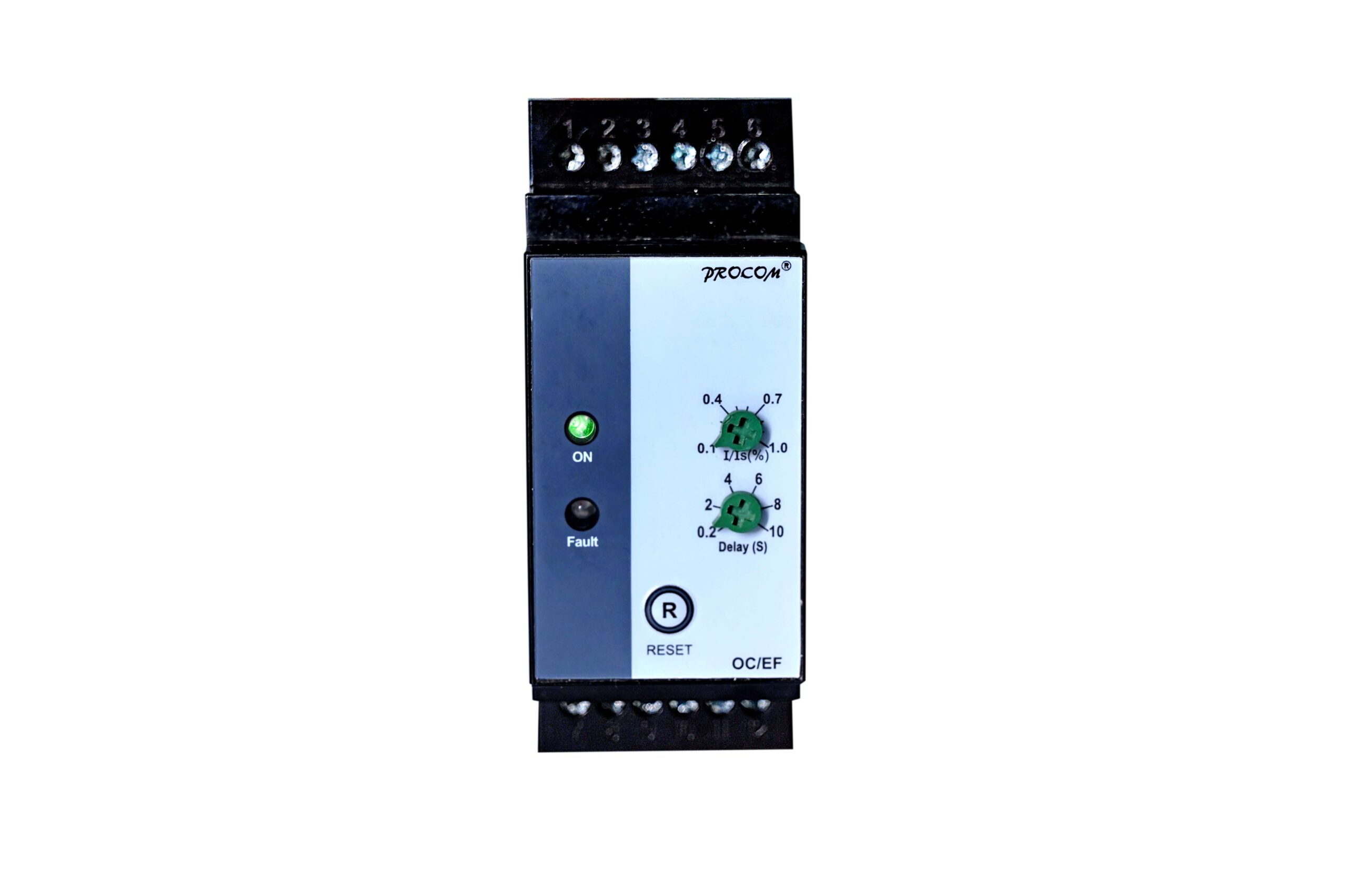

CMR 1ML / NFS
CURRENT MONITORING RELAY SERIES with 0.2 – 2 Amp Current/Earth Fault Protection Reset Type MANUAL
GET A QUOTE
View/Download Catalogue
| Specifications | |
|---|---|
| Auxiliary Supply | 35VAC / DC-300 VAC / DC |
| Power Consumption (max.) | 5VA (APPROX.) |
| Power On Delay | < 500 ms |
| LED Indication | Mains - POWER ON, OC - OVER CURRENT, UC - UNDER CURRENT. |
| Setting Accuracy | + / - 5% |
| Repeat Accuracy | + / - 2% |
| Hysterisis | + / - 5% |
| Relay Output | Contact Arrangement-1C/O Contact Rating-5A Res. @ 250 VAC / 30VDC Contact Material-Ag Alloy |
| Mechanical Life Expectancy | 3 x 10 Operations |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +80°C |
| Pollution Degree | 2 |
| Degree of Protection | IP-20 for Terminals, IP-40 for Housing |
| Mounting | Din Rail (35 mm symmetrical) |
| Dimensions in mm (WXHXD) | 37 x 65 x 92 (mm) |
| Weight | 150 gm |
| Test Function | NO |
