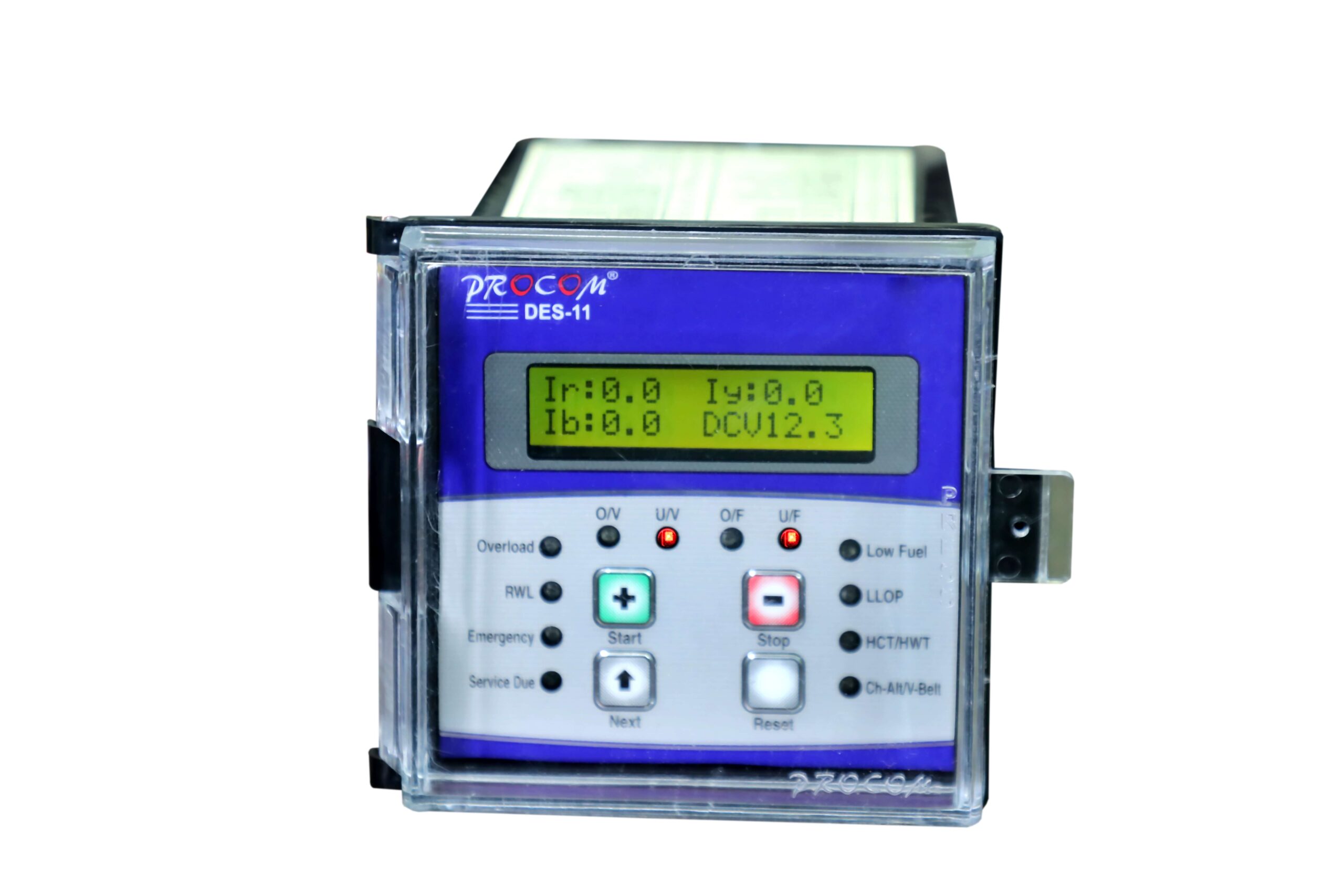

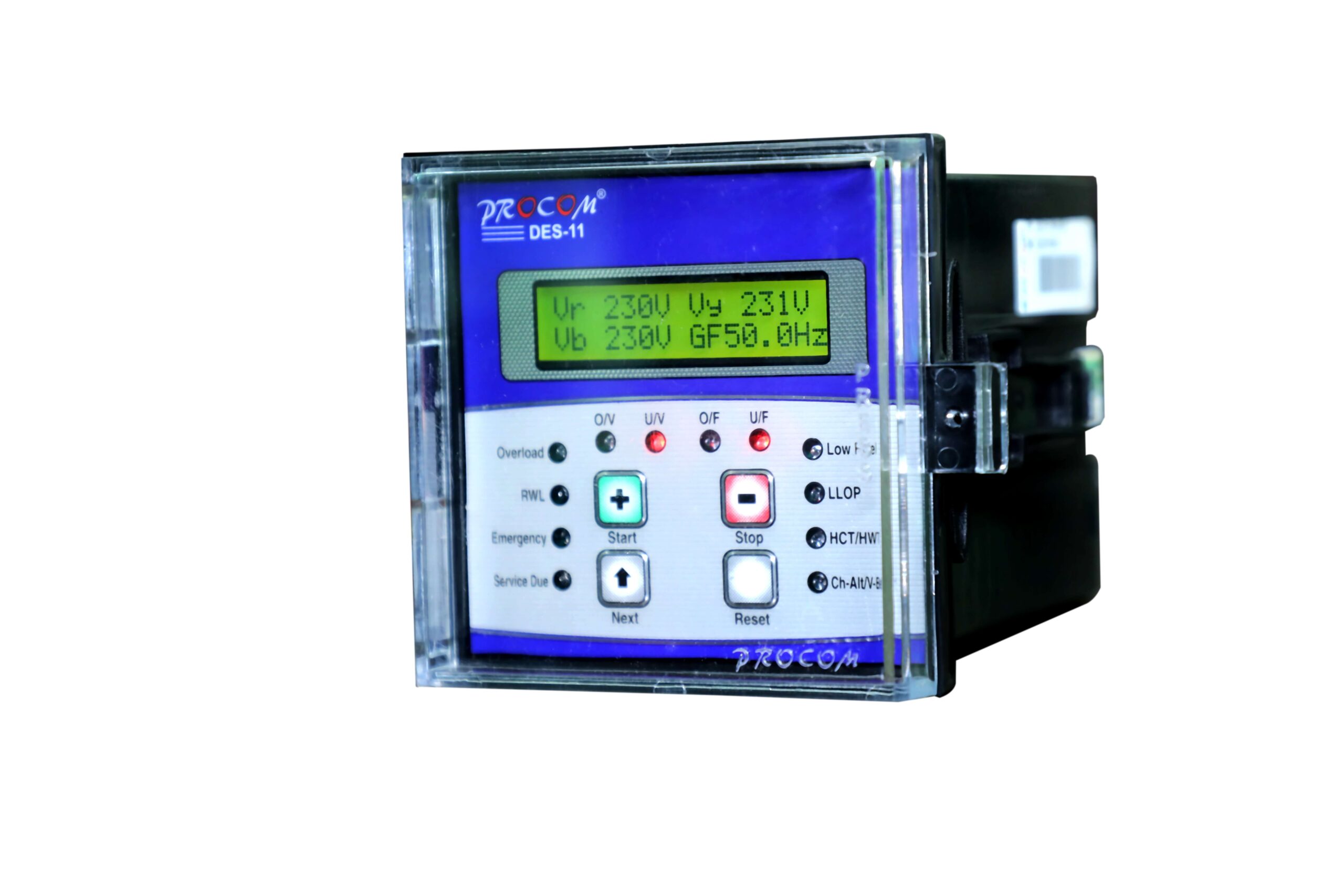

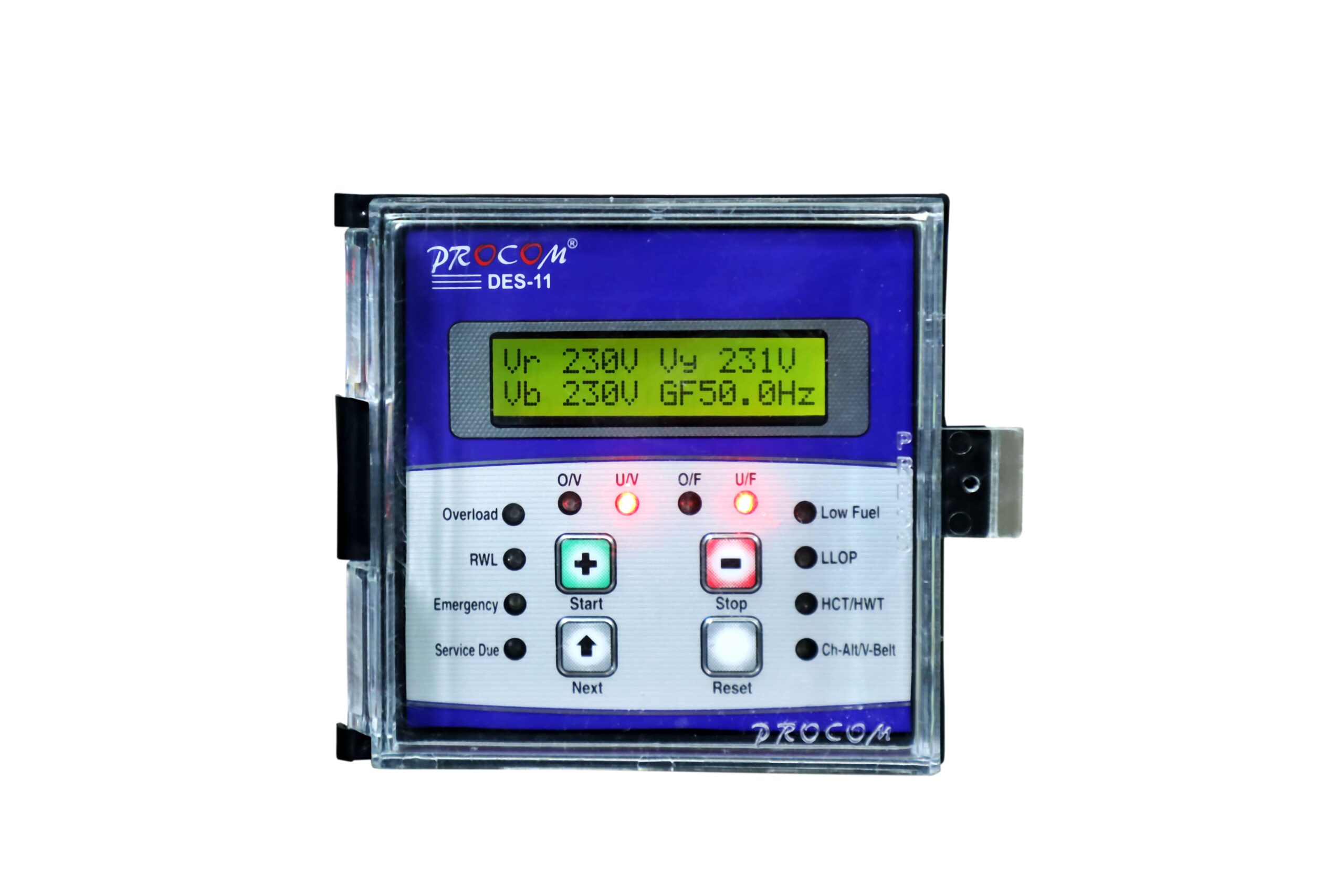

Manual Controller, Generator Measurements – 1 Phase voltage, 1 Phase current, Voltage monitoring and protection for under/over voltage and over speeding, Oil Pressure, HWT, Canopy Temperature/RWL, Over Load, Emergency, Low Fuel, Charging Alternator Fail/V-Belt, Fan Fault protection( 1Ph model B), Procom make CTs can accommodate upto 199 Amps, KW, KWh
GET A QUOTE View/Download CatalogueSpecifications | |
---|---|
Protection | Voltage monitoring and protection for under/over voltage and over speeding, Oil Pressure, HWT, Canopy Temperature/RWL, Over Load, Emergency, Low Fuel, Charging Alternator Fail/V-Belt, Fan Fault protection( 1Ph model B) |
Measurement & Display | Generator voltage (Ph-N, Ph-Ph), Generator Frequency, Generator Current, Fan Current( 1Ph Model B), Battery Voltage, Generator Run Hour, RPM, Oil Pressure in KG/cm, Radiator Temp in degree centigrade(Model –A) , Fuel Level, Programmed settings, PF, KW, KWh. |
Annunciations | LLOP, HWT(Model A), HCT (Model B), Fuel, RWL (Radiator Water Level-Model A), Canopy Temperature (Model –B), DG Under Voltage, DG Over Voltage, DG Over/Under Frequency, Charging Alternator/ V-Belt, DG Overload, Emergency. |
Contacts | Crank (NO Contact), Solenoid (NO Contact), Hooter (NO Contact), Electrical Feed for Charger ON (+12V) |
Timers | Generator voltage supervision timer, Generator over speed supervision timer, Generator Over load supervision time, Stop Solenoid on time, Fuel supervision time, LLOP supervision time, HWT supervision time (Model-A), RWL supervision time (Model-A), HCT supervision time (Model-B), Canopy Temperature Time (Model-B), Hooter Reset Time, Service Time, Ch –Alt contact On time, Crank Timer. |
