DGC-6D

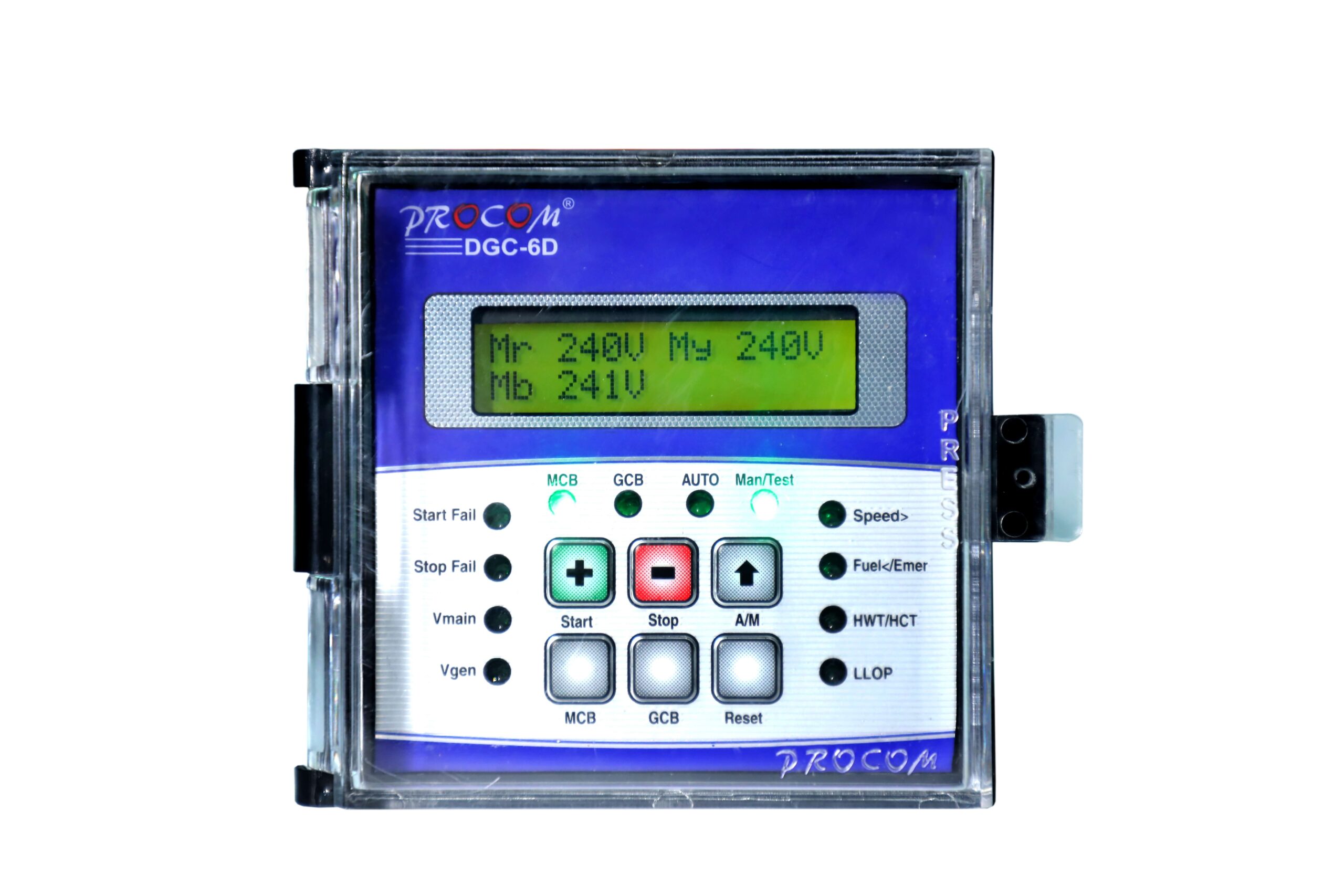

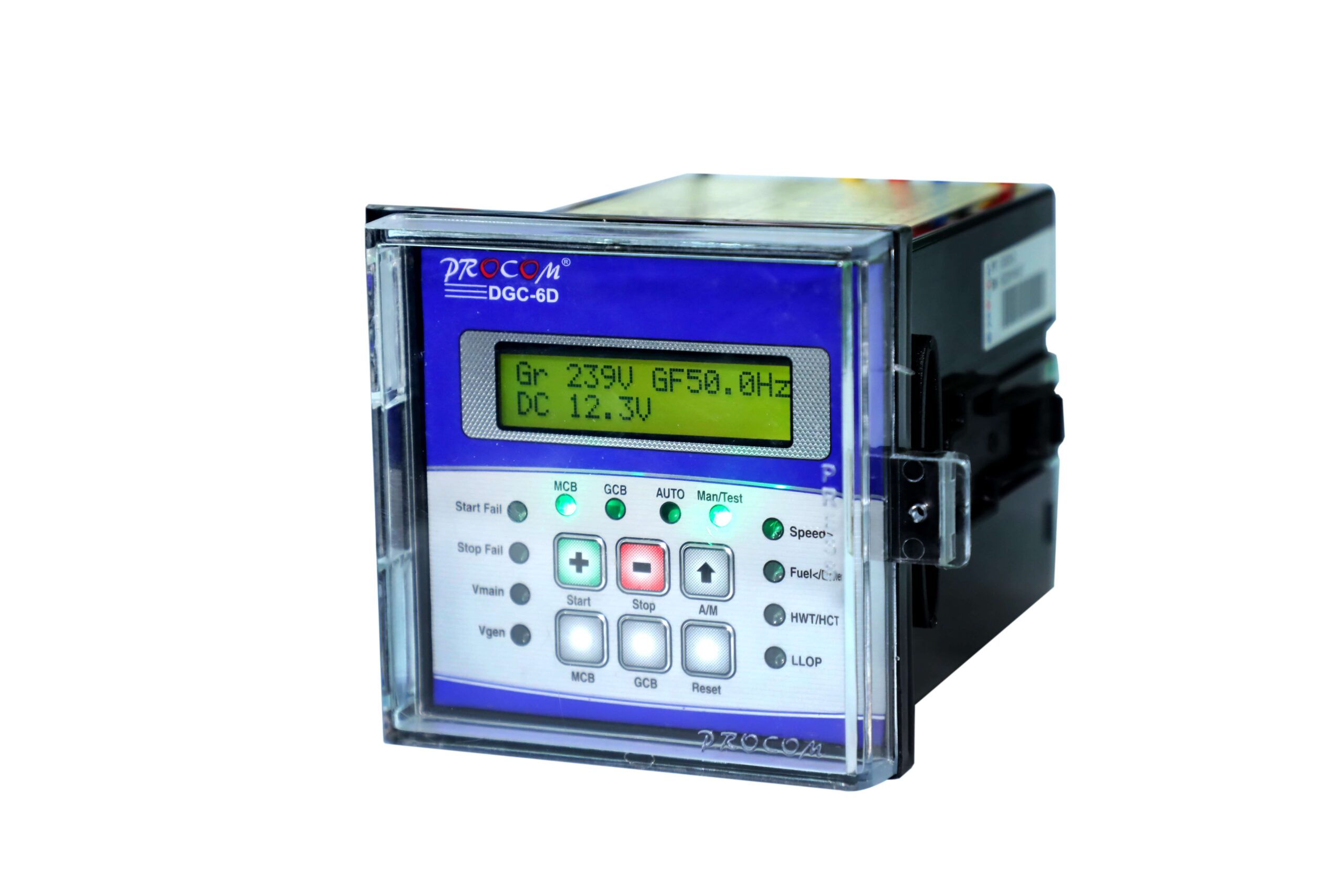

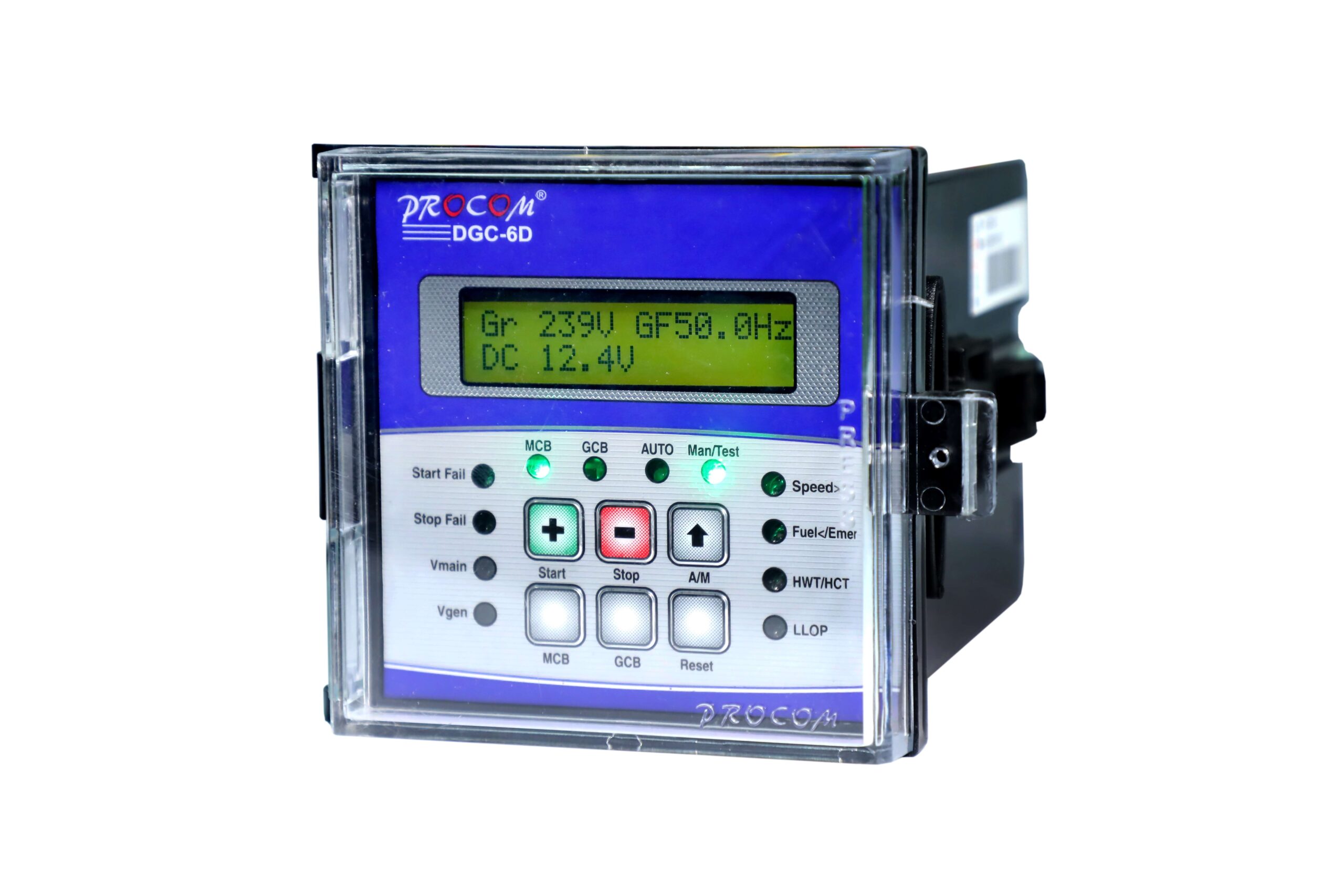

Automatic Engine Controller, The Microprocessor microcontroller-based DGC-6D automatic generator start and supervisory device is designed keeping in view the ease of operation. 3 phase Under & Over voltage protection, Phase under & over voltage protection of Generator supply, Generator over speed supervision.
Get a Quote
View/Download Catalogue
| Specifications | |
|---|---|
| Protection & Supervision | 3 phase Under & Over voltage protection for EB supply (True RMS measurement) , Phase under & over voltage protection of Generator supply (True RMS measurement), Generator over speed supervision, DC Battery Voltage supervision (Under & Over voltage) etc. |
| Measurement & Display | EB voltages of RYB phase, Generator voltage, DC battery voltage, Generator frequency, RPM, Cumulative Run Hour five digit, Set values. |
| LED Indication | Load on generator (GCB), Load on EB (MCB), Auto / Manual Mode (Auto, Manual), Emergency fault (Emer) / Low fuel fault, DG Fail to Start (FST) Cat/DCG-6D1I/07-08/03/Ver 1 Page 4/9, DG Fail to Stop (FSP), High Water Temperature (HWT) / High Cylinder Temperature (HCT), Low lube Oil Pressure (LLOP) |
| Timers | DG Start delay (variable), Generator Voltage Supervision (variable), Max. cranking time (variable), Crank gap time (variable), No of crank attempts (variable), Mains restoration time (variable), DG recooling time (variable), Emergency / Low fuel fault timer (Variable), High Water temperature (Variable), Low lube Oil Pressure (Variable), Generator over speed delay timer (Variable), Timer for stop solenoid (Variable) |
